Signage Consultant

Sign Drawings

If you need help creating a signage drawing, our signage consultant services can help.

  • A business name or logo?
  • A location in mind?
  • Type of sign (e.g., storefront, pylon, monument, wall-mounted)?
  • Any city code or size limits?

Let’s put something together if you’re ready.

Signage Drawing company in New York City

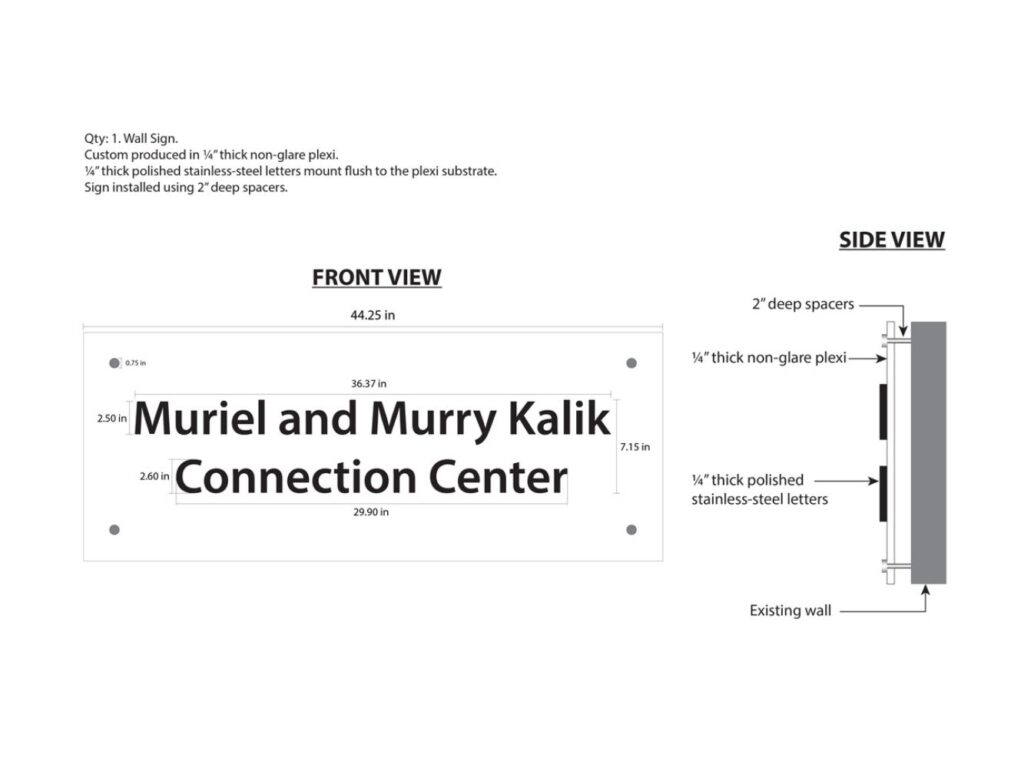

Basic Example of What a Signage Drawing Includes:

  1. Front View (Elevation)

Shows the face of the sign.

Includes logo/text, dimensions (width x height), colors, and lighting details.

  1. Side View (Depth/Thickness)

Useful for 3D signs.

Shows mounting depth, material thickness, and any internal lighting.

  1. Section Detail

A close-up cut-through view (e.g., showing LED placement, backer panel layers, or mount type).

  1. Mounting Details

How it will be installed (e.g., wall mount with anchors, raceway, freestanding posts, etc.).

  1. Materials & Finishes

Example:

Letters: ½” acrylic, painted PMS 485C red

Backer panel: Aluminum, brushed finish

Lighting: LED, face-illuminated

  1. Location Drawing / Site Plan

Shows where the sign is placed on a building or site.

Helps clients, inspectors, and installers understand scale and visibility.

We transform ideas into impactful visual experiences
